GEZHI 3 port Polarization Insensitive Optical Circulator that are used to direct the optical signal from one port to another port and in one direction only. This action prevents the signal from propagating in an unintended direction. Optical circulators can be used to achieve bi-directional optical signal transmission over a single fiber. The Fiber Optical circulators is commonly used in WDM networks, chromatic dispersion compensation, polarization mode dispersion, optical add-drop modules (DWDM OADM), OTDR optical amplifiers and fibre sensing applications.

Features
Low PDL
Low Insertion Loss
Wide Band High Isolation
High Stability and Reliability
Compact In-Line Package

Applications
Fiber Sensors
Add-Drop Multiplexing
Bidirectional Pumping
Bidirectional Signal Transmission Systems
Coupling In-Line Chromatic Dispersion Compensation Devices

Specification

Parameter		P Grade
Configuration		Port 1 to Port 2 to Port 3
Operation Wavelength (nm)		1310±30 or 1550±30 or 1585±30
Isolation (dB)	Typical	0.6
	Maximum	0.8
Typical Isolation (dB)		≥50
Minimum Isolation (dB)		≥40
Cross Talk (dB)		≥50
Polarization Dependent Loss (dB)		<0.15
Polarization Mode Dispersion		<0.1
Return Loss(dB)		≥50
Power Handling (mW)		500
Opterating Temperature (℃)		-10~+75
Package dimension (mm)		Φ5.5xL50 or Φ5.5xL63

Specifications may change without notice.

Above specification are for device without connector.



Sample Picture

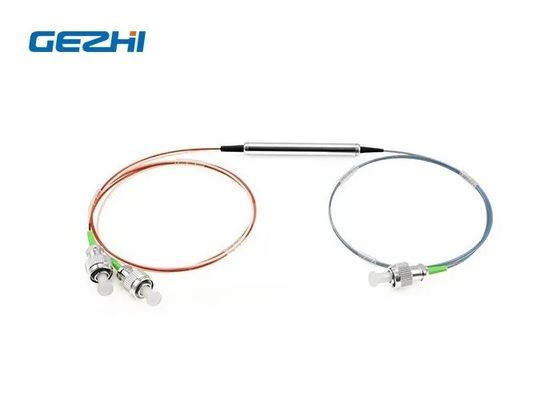

3 port Polarization Insensitive Optical Circulator with FC/APC connector



In a 3-port circulator a signal is transmitted from port 1 to port 2, another signal is transmitted from port 2 to port 3 and, finally, a third signal can be transmitted from port 3 to port 1. This behavior is represented by the following.



GEZHI 3 Port Optical Circulator can be used to send optical signals through a single fiber in two directions.





Order Information
